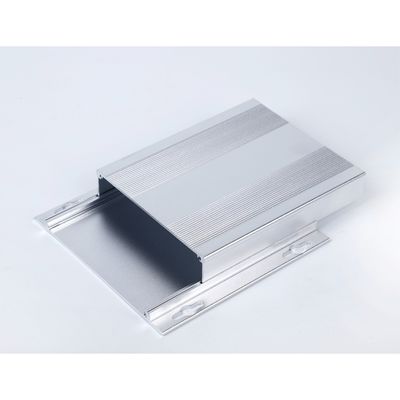

Split Body Black Anodized Aluminum Enclosure With Flanged Walll Mount 107*27*120mm
|
|
تفاصيل المنتج:
شروط الدفع والشحن:
|
مفصلة وصف المنتج
| Product: | Split-body Extruded Aluminum Enclosure | Color: | Black, Silver, and customized colors |
|---|---|---|---|
| External size: | 131*27*120mm, Any Length Available | Length: | can be cut as per your requests |
| Application: | Electronic Projects like switch/converter, power supply units, audio amplifier projects, ham radio projects,etc | Material: | Aluminum 6063 |
| Surface treatment: | Matt Anodized, custom available | Type: | Wall mount Aluminum Enclosure |
Split Body Black Anodized Aluminum Enclosure With Flanged Walll Mount 107*27*120mm

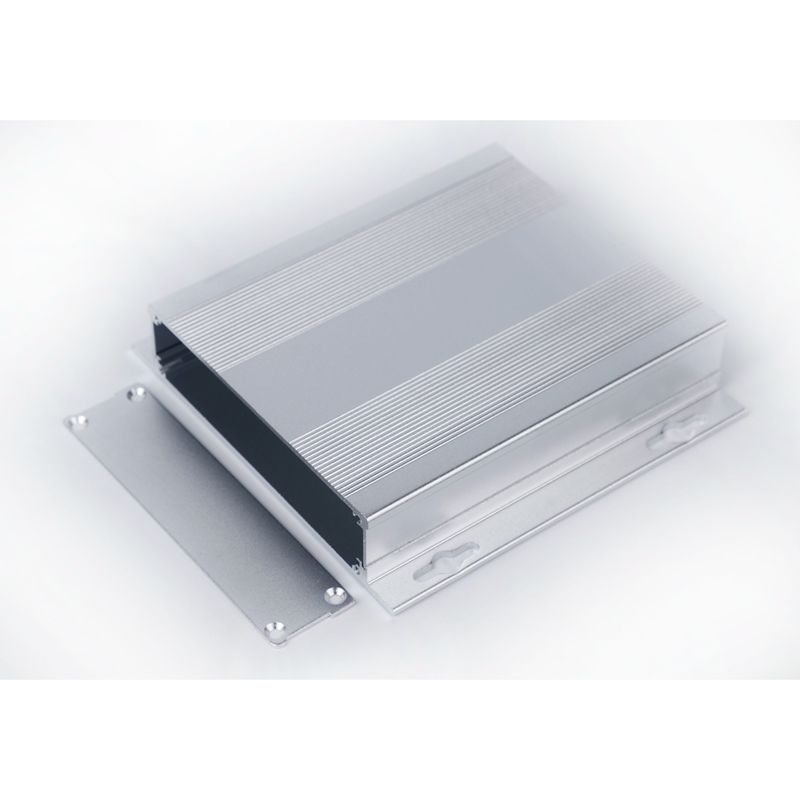

This Split-Body Extruded Aluminum Enclosure size is 131/27/120mm with wall mount, Enclosures bodies are fabricated from extruded aluminum with internal slots which are designed to accomodate printed circuit boards 102mm width.
The sliding cover design allows the top part of the extrusion slides smoothly, easy to access inside to mount parts or components
This heat sink case made of extruded aluminum AL6063, it has excellent electromagnetic shielding performance, good heat dissipation performance.
This extruded electronic Aluminum Enclosure are widely use for instrument, electric power,telecommunication, radio and television, medical device,network, hotel and military supply.
Description for this Split-body Extruded Aluminum Enclosure
- Extruded aluminum enclosure with heat-sink top and heatsink sides.
- Sturdy extruded case construction
- Black / Silver sandblast / matte anodized finish
- Built-in slots/grooves are for holding PCB or circuit boards.
- Excellent electromagnetic shielding performance, good heat dissipation performance
- Aluminum PCB Box with Flanged Ear Body for Electronics Development Black
- Customization is welcomed, such as cut-out/silkscreen/laser engraving/sticker/Tapping/Laser cutting Or customized as per your drawing or sample.
Paremeters of this Extruded Aluminum Heatsink Wall-mount Enclosure
| Model NO. | E10727 |
| Structure | Split body Aluminum Enclosure |
| Outer Size | 131*27*120mm (W*H*L) L can be change |
| PCB width | 102mm |
| Surface treatment | matt black sandblasting anodizing |
| Color | Black and Silver, can be customized |
| Components | The top and bottom halves aluminum enclosure, end caps, and self-tapping screws |
| Material | Extrusion Aluminum 6063 |
| Cusomization | color ,cutout, laser silkscreen,label, drill holes, change length |
Drawing
Over 200 extruded aluminum enclosures available, your OEM / ODM order is highly welcomed.
